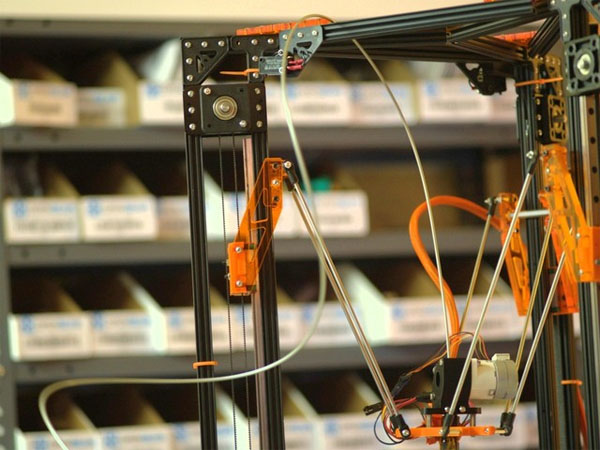

OpenBeam Kossel Pro 3D打印机

专业3D打印机Kossel 3D打印机:本机特色,基于OpenBeam 平台和Delta设计。3D打印注塑模具打造零部件让3D打印机易于组装,同时很好地降低成本。目前900美元的Full Kit全部买走了,1000美元的Full Kit 100台只剩下2台了,需要的朋友快去Pledge吧。

001

002

003

004

技术参数:

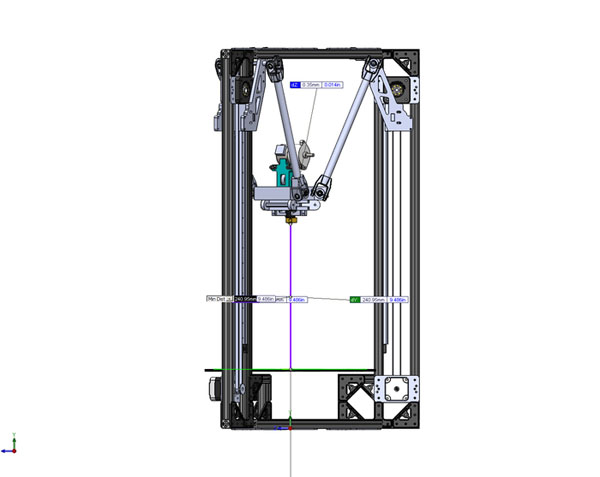

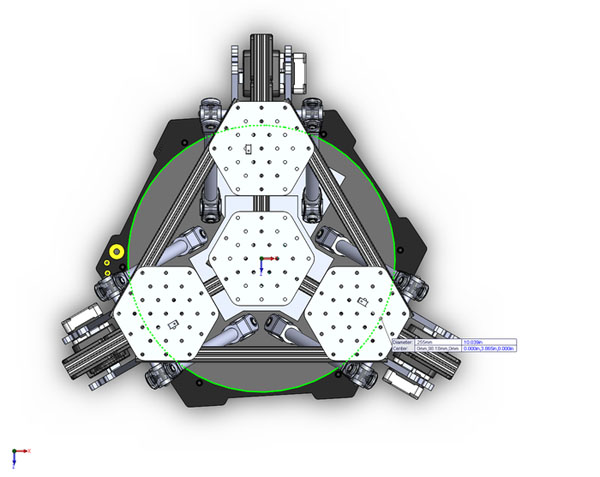

3D打印区域:圆柱体构建区域直径  250mm × 250mm 高

线性致动器分辨率(Linear Actuator resolution): 0.2mm / full step, 1/32″ Microstepping

挤出机: OpenBeam designed Dual Use extruder body. Includes parts for both standard NEMA17 stepper mount and geared pancake motor. Extruder can be configured for both direct drive and bowden drive.

热端: Testing so far had been done with genuine J-Heads from Brian Refsnyder; if stretch goal is reached, we will be testing our own full stainless steel hot end design.

摇动臂: Carbon Fiber swing arms with OpenBeam designed full ball bearing ball joints.

直线轴承: 12mm Recirculating ball linear slides.

电子: Metrix Brainwave

加热平台: 可选

文章来源:3D打印机智能网 (原文:《OpenBeam Kossel Pro 3D打印机 一款新型3D打印机》)
